Geocomposite Geonet

TMP Geocomposite Geonet for drainage is Continuous Filament Needle punched non-woven Geotextile bonding geonet, geonet thickness from 5mm to 8mm.

  • Overview

    TMP Geocomposite Geonet for drainage is Continuous Filament Needle punched non-woven Geotextile bonding geonet, geonet thickness from 5mm to 8mm. Tri-dimension composite geonet for drainage has the property of geotextile (filtration function) and geonet (drainage and protection) and provide a function system filtration-drainage-protection. The core of net with its unique tri-dimension structure can bear higher compression load in construction and remain the certain thickness, provide good water conductivity.


  • Dimensions

    Roll Width: 2m – 4m
    Roll Length: 30m or customization

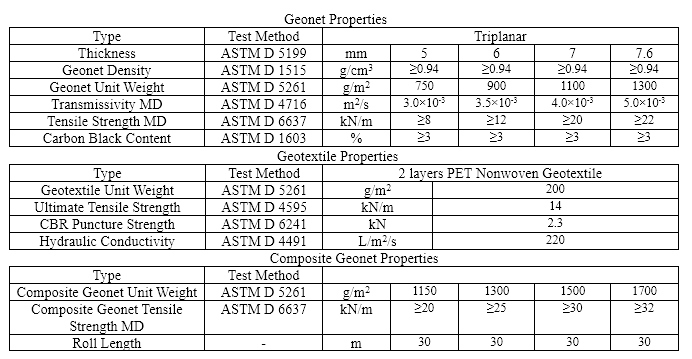

  • Specifications


  • Package

    •Woven cloth packing.
    •Tape used as per requirement.

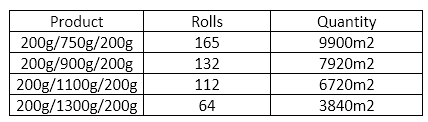

    Loading Capacity For One 40HC Container


  • Application

    TMP Geocomposite Geonet for drainage provides effective and economical solution of landfill drainage, roadbed and road drainage, railway drainage, tunnel drainage, underground structure drainage, the retaining back wall drainage, gardens and sports grounds drainage.
