Product

HDPE Geomembrane

GM SH series of geomembrane is manufactured from High Density Polyethylene resins. The surfaces of both sides are smooth. The products are manufactured by the technology of coextrusion-blown triple layer.

  • Overview

    Overview

    GM SH series of geomembrane is manufactured from High Density Polyethylene resins. The surfaces of both sides are smooth.

    The products are manufactured by the technology of coextrusion-blown triple layer.


    Performance

    ■ Excellent physical and mechanical performance, high tearing resistance;good deformation adaptability, high puncture resistance;

    ■ High aging resistance, high UV resistance, anti-acid & alkali;

    Excellent low & high temperature resistance, innocuous, long life span;

    Perfect water proof performance, seepage and humidity resistance.


    Applications

    The projects of Landfill site, bank, dam, storage reservoir, channel, irrigation, highway, railway, tunnel, drinking tank, salt field bittern pan, chemical liquid storage, treatment tank, artificial lake and riverway etc.

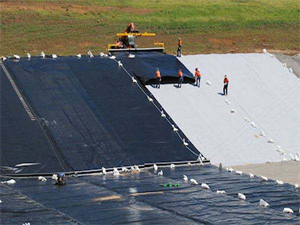

    Application43.jpg  Application33.jpg

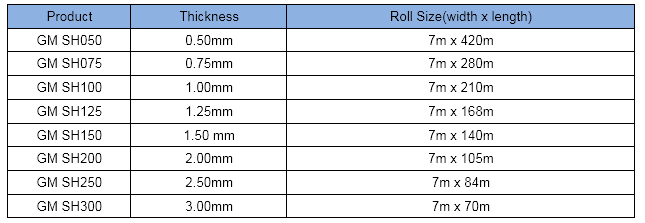

  • Dimensions

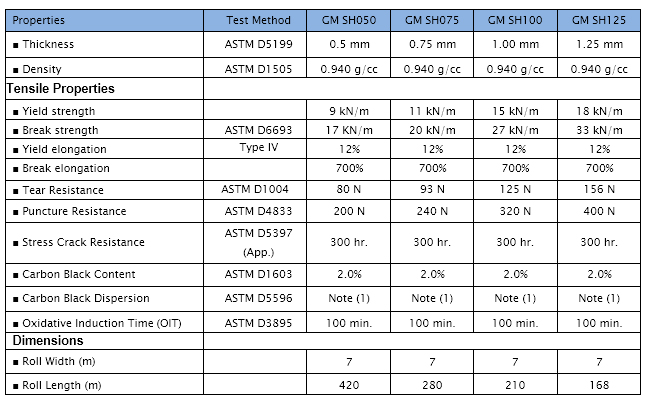

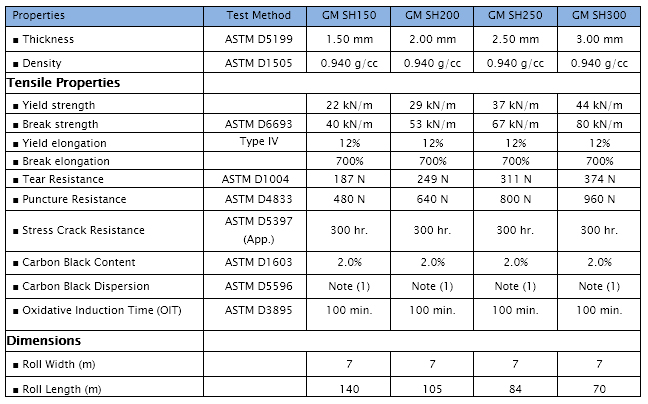

  • Specifications

    Geomembrane Specifications.jpg



  • Package

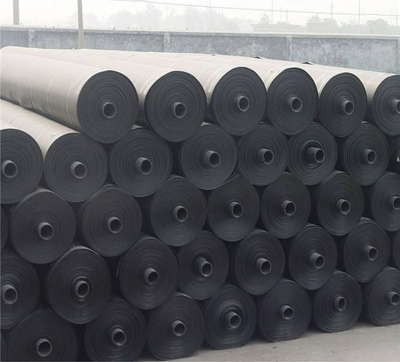

    Package

    • Woven cloth packing.

    • Tape used as per requirement.

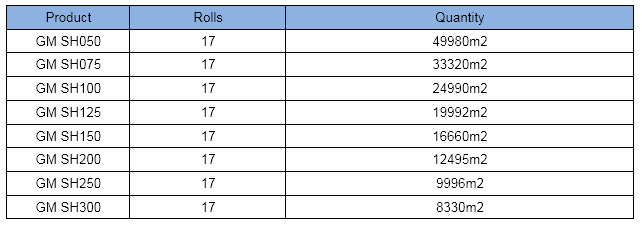

    Loading Capacity For One 40HC Container


    Lead Time
    Average one 40HC container each day.


  • Application

    The projects of Landfill site, bank, dam, storage reservoir, channel, irrigation, highway, railway, tunnel, drinking tank, salt field bittern pan, chemical liquid storage, treatment tank, artificial lake and river wayetc.

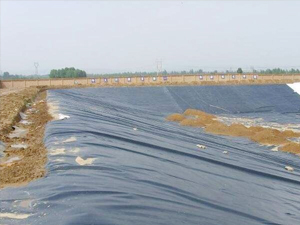

    Application11.jpg   Application22.jpg
